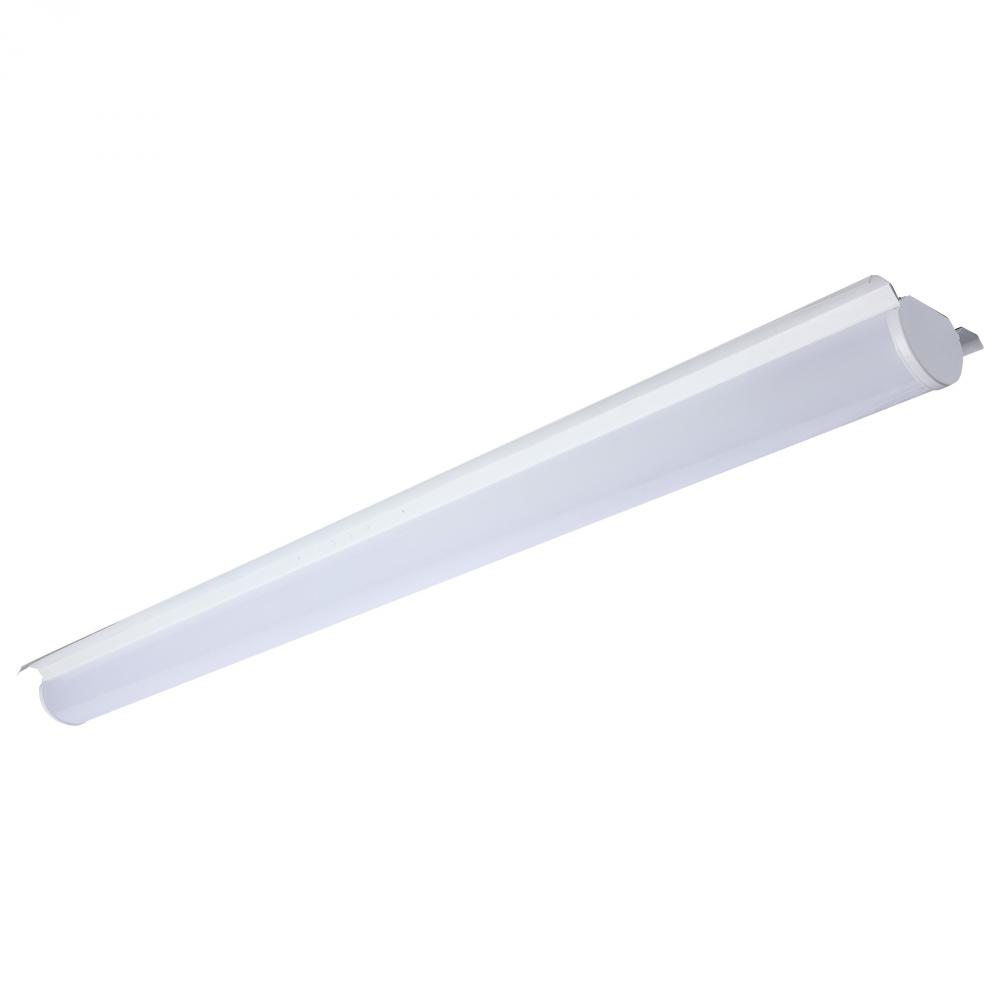

30/40/50 Watt LED 4 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt (65/1031) by Nuvo
Image may not reflect selected features
No Image
Available
Available
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/1031
Dimensions:
Height: 3.30"
Width: 5.89"
Gloss White
Availability:
- Manufacturer has 380 items available.
Recommended Items
Description
Details
Downloads
30/40/50 Watt LED 4 Foot Retrofit Strip Light; 35K/4K/5K CCT Selectable; 120-277 Volt
Vendor Item #:
65/1031
Category:
Utility
Subcategory:
Other Utility
Option:
LED
, Prop 65
Category:
Linear Strip
Sub Category:
Strip Retrofit
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
4.13
Each Length:
48.9
Each Width:
6.69
Length:
47.9
Lumens:
3900L/5200L/6500L
Tariff Code:
9405.11.6010
Warranty:
5-Years
Amps:
0.250-0.108/0.333-0.144/0.417-0.181A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B2-U3-G3
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
Vietnam
CRI:
80
Dimmable Down To:
100 to 20 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Standard; Standard; Standard; Standard; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires; Low-Bay Luminaires for Commercial and Industrial Buildings; Direct Linear Ambient Luminaires; Retrofit Kits for Direct Linear Ambient Luminaires; Retrofit Kits for Low-Bay Luminaires for Commercial and Industrial Buildi
Each Cube:
0.7819
Each Quantity:
1
Efficacy:
130.00 LPW
FCC Compliant:
Yes
Feature 1:
Field Selectable (3 wattages and 3 CCT)
Feature 2:
Retrofit Existing 2.75"-5.25" Wide Strip Fixtures
Feature 3:
Adjustable Installation Strips
Feature 4:
Smooth Frosted Lens for Even Light Distribution
Feature 5:
4-foot Steel Construction
Feature 6:
0-10V Dimmable
Feature 7:
Damp Location Rated
Feature 8:
50,000 Hour Functional Life
Feature 9:
5 Year Warranty
Finish Family:
White
Flr Equiv:
3 x 32W T8
Has Camera:
No
Has Emergency Battery:
No
Indoor Outdoor:
Indoor
Installation Notes:
Default CCT setting is 4000K. Default Wattage setting is 50W.
IOT Enabled:
No
JA8 Compliant:
No
Lens Finish:
Glossy Frosted
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's LED Strip Retrofit Kit, 65-1031, is an energy-efficient upgrade for existing fluorescent fixtures. Designed with adjustable mounting strips to fit housings 2.75"–5.25" wide, this 4ft kit features field-selectable CCT and wattage,
Material:
Steel
Mounting Height:
1.0
Mounting Length:
48.0
Mounting Procedure:
Ceiling/Wall
Mounting Width:
2.75
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
50
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's new LED Strip Retrofit Kits offer an energy-efficient solution for upgrading existing fluorescent strip fixtures. Designed with adjustable mounting strips to retrofit housings from 2.75" to 5.25" wide, these kits accommodate a wide
Safety Listing:
cULus - Classified
SDS class:
LED_Fixture
Short Description:
4FT 50W LED STRIP RETROFIT
Sloped Ceiling Compatible:
No
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
3.42
Manufactured By:
Nuvo
