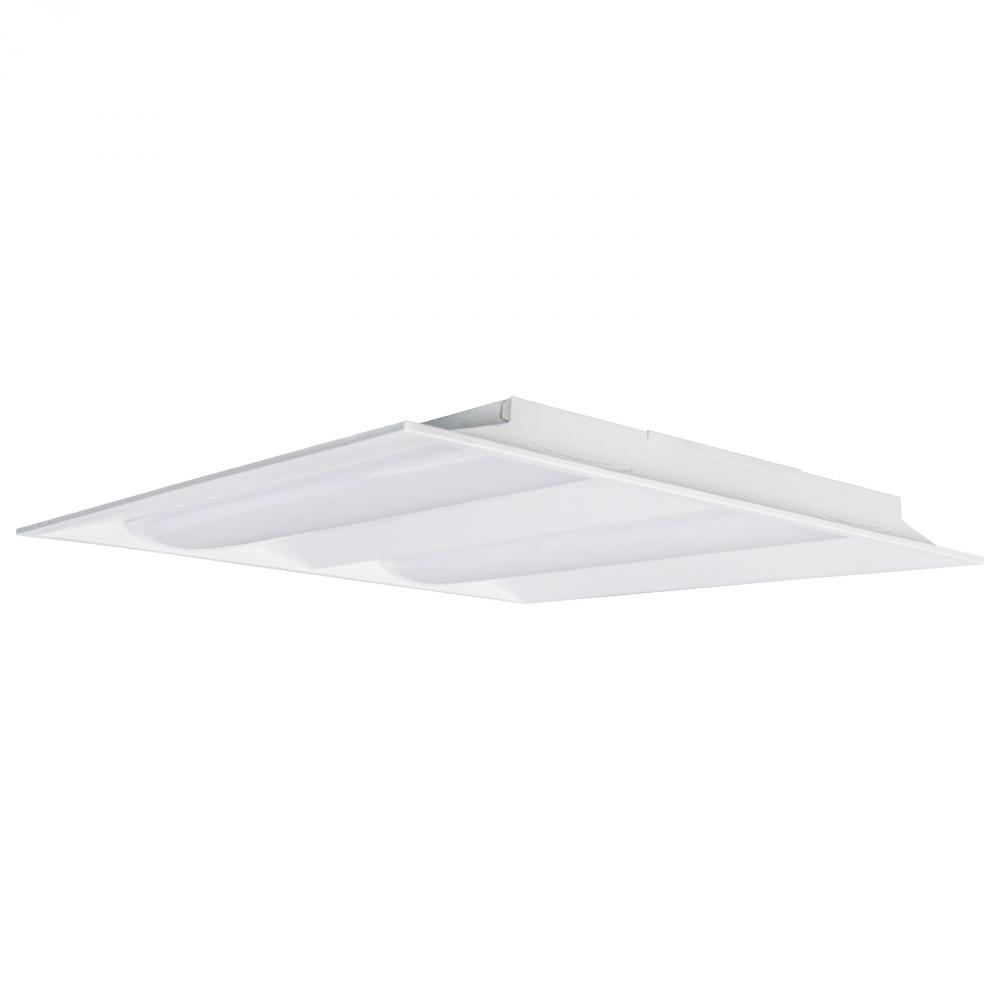

2X2 Emergency Backup; Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens (65/696) by Nuvo
Image may not reflect selected features
No Image
Available
Available
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
65/696
Dimensions:
Height: 3.02"
Width: 23.74"
White
Availability:
- Manufacturer has 135 items available.
Recommended Items
Description
Details
Downloads
2X2 Emergency Backup; Double Basket LED Troffer Fixture; Wattage Selectable; CCT Selectable; Lumens Selectable
Vendor Item #:
65/696
Category:
Specialty Items
Subcategory:
Lighting Accessories
Option:
LED
, Prop 65
Lumens:
3300+
Category:
Troffer
Sub Category:
Double Basket
Additional Info:
90 Minute Battery Runtime
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Natural Light
Dimmable:
Yes-Dimmable
Each Height:
25.71
Each Length:
25.51
Each Width:
4.33
Length:
23.74
Lumens:
3300L-4600L
Tariff Code:
9405.10.6020
Warranty:
5 Year Limited - Fixtures
Amps:
0.300-0.108/0.350-0.126/0.400-0.144A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Country Of Origin:
China
CRI:
80
Dimmable Function:
0-10V Dimming
DLC Classification:
Standard
DLC Primary Use:
2x2 Luminaires for Ambient Lighting of Interior Commercial Spaces
Each Cube:
1.6435
Each Quantity:
1
Efficacy:
110.00/112.86/115.00 LPW
FCC Compliant:
Yes
Feature 1:
3 CCT Selectable ( 3500K, 4000K, 5000K)
Feature 2:
3 Wattage Selectable (30W, 35W, 40W)
Feature 3:
0-10V Dimmable
Feature 4:
DLC Listed
Feature 5:
Length: 23.74 inches X Width:23.74 inches X Height: 3.02 inches
Finish Family:
White
Fixture shape:
Square
Flicker Free:
Yes
Has Driver:
Yes
Has Emergency Battery:
Yes
HID Equiv:
70W-100W
IC Rated:
Yes
Incandescent Equivalent:
125W
Indoor Outdoor:
Indoor
IP Rating:
IP20
JA8 Compliant:
No
Lens Material:
Poly methyl methacrylate (PMMA)
Long Description:
SATCO|NUVO's 65-696 2x2 Emergency Backup Double Basket square troffer comes in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technol
Material:
Steel
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +40C (+104F)
Pack Type:
Box
Panel Size:
2x2
Power Factor:
0.9
Quantity In Pack:
1
R9 Value:
15
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO|NUVO's versatile Single and Double Basket troffers now come in field selectable power and color options. Choose from three distinct wattage settings and color temperatures during installation. Engineered with cutting-edge driver technology, our t
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Short Description:
2X2 EM DOUBLE BASKET TROFFER
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
No
Title 24 Compliant:
No
Total Harmonic Distortion:
<20%
Wattage Selectable:
Yes
Weight Lb.:
9.359999999999999
Manufactured By:
Nuvo
