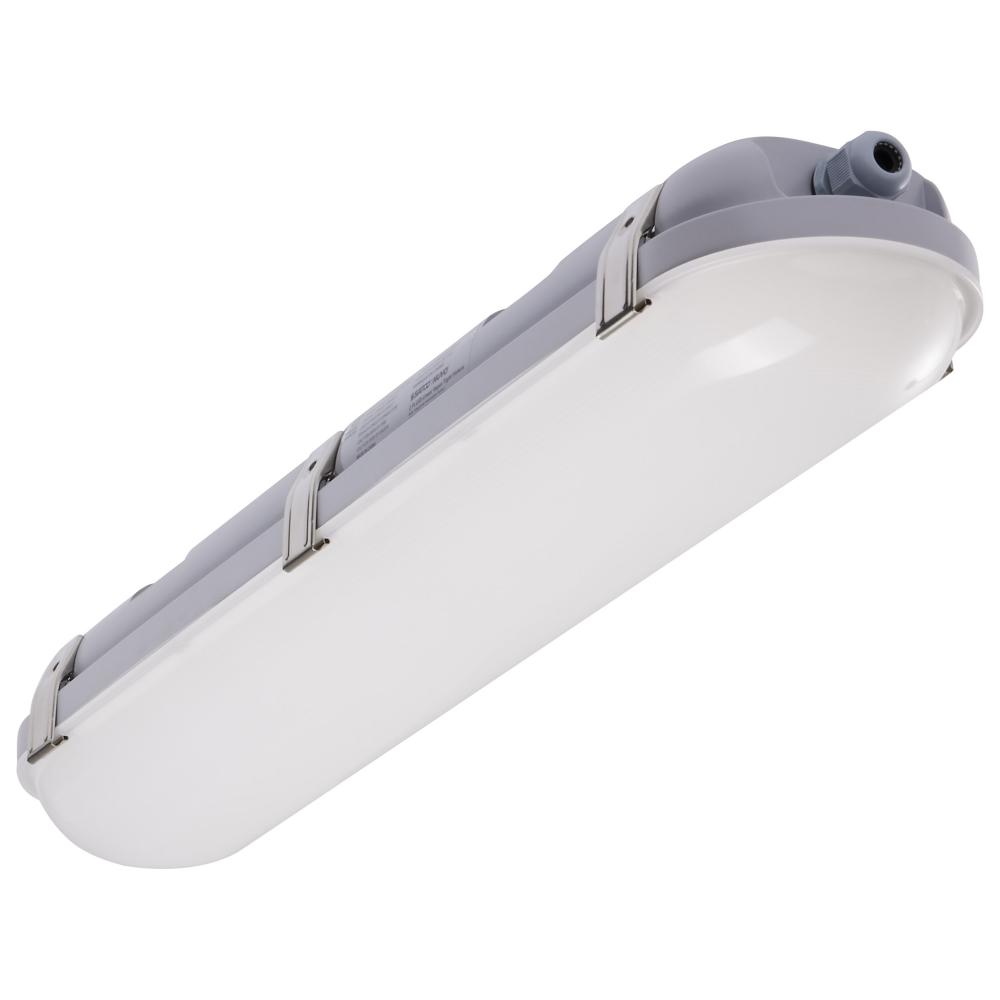

2 Foot; 20 Watt; Vapor Proof Linear Fixture; CCT Selectable; IP65 and IK08 Rated; 0-10V Dimming; (65/820R1) by Nuvo

Image may not reflect selected features

No Image
Available

2 Foot; 20 Watt; Vapor Proof Linear Fixture; CCT Selectable; IP65 and IK08 Rated; 0-10V Dimming;

Call for Price

Item #:

65/820R1

Dimensions:

Height: 3.46"

Width: 4.92"

Finish:

Gray

Availability:

Manufacturer has 79 items available.

Recommended Items

Description

Details

Downloads

2 Foot; 20 Watt; Vapor Proof Linear Fixture; CCT Selectable; IP65 and IK08 Rated; 0-10V Dimming; 120V-347V

Vendor Item #:

65/820R1

Category:

Utility

Subcategory:

Other Utility

Finish:

Gray

Option:

LED , Prop 65

Lumens:

1601-2600

Kelvin:

4001-4500

Category:

Linear

Sub Category:

Vapor Proof

Style:

Utility

Avg Rated Hours:

50000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm to Cool White

Dimmable:

Yes-Dimmable

Each Height:

3.94

Each Length:

25.98

Each Width:

5.71

Length:

23.62

Lumens:

2164L-2505L

Tariff Code:

9405.42.6000

Warranty:

5-Years

Amps:

0.167-0.058A

ANSI Base:

Integrated

BAA Compliant:

Beam Angle:

120

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

T20 Exempt - Fixtures Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

Thailand

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

0-10V Dimming

DLC Classification:

Standard

DLC Primary Use:

Direct Linear Ambient Luminaires

Each Cube:

0.3382

Each Quantity:

Efficacy:

108.20/116.73/125.25 LPW

FCC Compliant:

Yes

Feature 1:

3 CCT Selectable

Feature 2:

2 foot

Feature 3:

Vapor Proof Model

Feature 4:

120-347 Voltage

Feature 5:

Durable, Gray Polycarbonate Material

Feature 6:

IP65 & IK08 Rated

Feature 7:

Wet Location Rated

Feature 8:

5 Year Warranty

Feature 9:

50,000 Hour Functional Life

Finish Family:

Gray

Fixture shape:

Linear

Flicker Free:

Has Camera:

Has Driver:

Yes

Has Emergency Battery:

HID Equiv:

50W

Impact Rating (IK):

IK08

Incandescent Equivalent:

125W

Indoor Outdoor:

Indoor;Outdoor

IOT Enabled:

IP Rating:

IP65

JA8 Compliant:

Lens Finish:

Opaque

Lens Material:

Polycarbonate (PC)

Long Description:

The SATCO NUVO 65-820R1 2 foot Vapor Proof LED fixture delivers durability and performance in demanding environments. This model operates at 20 watts and features 3 CCT selectable options, offering flexibility in light output. Built with rugged IP65 and IK

Material:

Polycarbonate (PC)

Mounting Procedure:

Ceiling/Wall

NSF Approved:

Yes

Operating Frequency:

50/60Hz

Operating Temp:

-40C (-40F) to +45C (+113F)

Order In Multiples Of:

Pack Type:

Box

Power Factor:

>0.96

Quantity In Pack:

Rated For Vapor Tight Fixture:

Yes

Replaceable Light Source:

RoHS Compliant:

Yes

Romance Copy:

The SATCO NUVO Vapor Proof LED fixture series delivers durability, versatility, and performance for demanding environments. All models feature 3 CCT selectable options, operate on a wide 120-347V range, and are built with rugged IP65 and IK08 construction.

Safety Listing:

cETLus - Listed

SDS class:

LED_Fixture

Short Description:

2' 20W LINEAR VAPOR PROOF

Temperature (CCT):

3000K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

10.30%

Wattage Selectable:

Weight Lb.:

3.09

Manufactured By:

Nuvo
